Cutting & Burning Guides

Small wrap-around pipe template, 2-1/2 inches wide by 2 ft long, sized for 1 to 3 inch pipe. Wrapping it around the pipe gives a straight, square line to scribe or paint before cutting. The abrasion-...

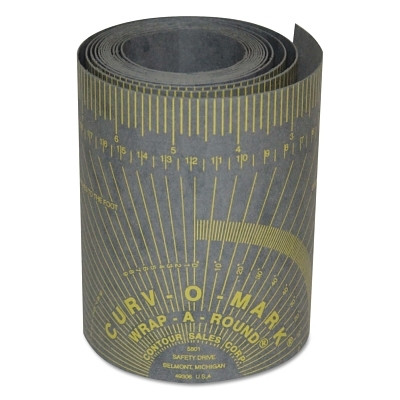

Medium Wizard Wrap measuring 3-7/8 inch by 60 inch for 2 to 16 inch pipe. Heat resistant material wraps around mid-range pipe diameters to guide miter and saddle cut layout. Used by pipe welders...

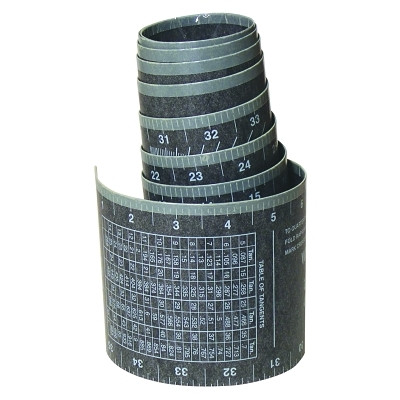

Wrap-around template 4 inches wide by 6 ft long, covering 3 to 10 inch pipe to scribe a straight, square line for cutting and beveling. Heat- and abrasion-resistant material survives repeated use...

Individual on/off magnetic block from Flange Wizard for burning guide anchorage on plate up to 1/8 inch thick. Switchable magnet anchors burning guides to ferrous plate for straight or beveled cuts,...

164GG Wrap-A-Round ruler from Curv-O-Mark in gray heat-resistant fabric. Wraps around pipe and round stock for marking layout lines that survive grinding and cutting heat in fabrication.

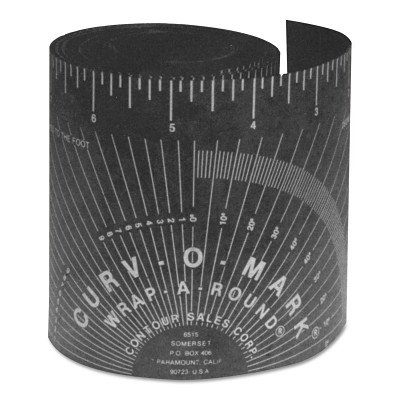

Extra-large Wrap-A-Round from Curv-O-Mark, 5 inch by 7 foot black fabric. Marks cut lines and miters on large-diameter pipe in oilfield, refinery, and structural fabrication work.

Standard burning guide from Flange Wizard for plate steel cutting layout. Guides oxy-fuel and plasma torches along straight cut paths during weld prep and plate fabrication work. Used by structural...

Wrap-A-Round flexible ruler from Curv-O-Mark in 5 inch by 9 foot, black heat-resistant fabric. Wraps around oversized pipe for straight cut layout in pipeline, structural, and tank fabrication.

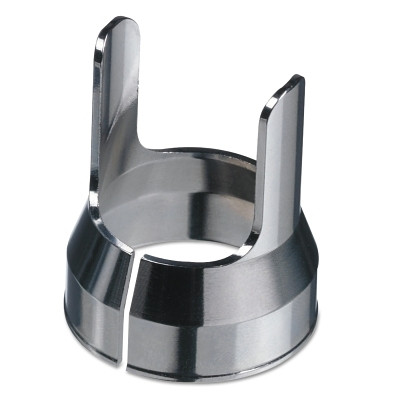

Thermal Dynamics standoff guide for CM81-101 1-torch plasma cutting service. Maintains consistent tip-to-work distance for accurate cuts across welding shops, fabrication operations, and industrial...

Plasma guide base from Flange Wizard for plate steel plasma cutting. Guides plasma torch along straight and curved cut paths for consistent cut quality. Used by structural fabricators and ironworkers...

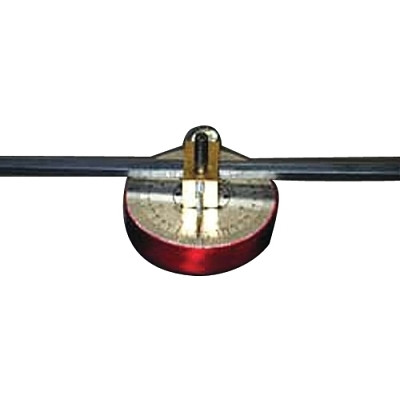

Magnetic circle layout and burning guide from Flange Wizard for plate steel cutting. Magnetic base anchors to ferrous workpiece while the rotating arm guides oxy-fuel or plasma torch through circle...

Miter marker and imager combo case from Flange Wizard supporting 1-1/2 inch to 18 inch pipe sizes. Combo case bundles miter marker arm, multi-hole image tower, and carrying case for pipe welding...
